New Build - 2-Layered Security Solution — Kingston, Brisbane QLD 4114

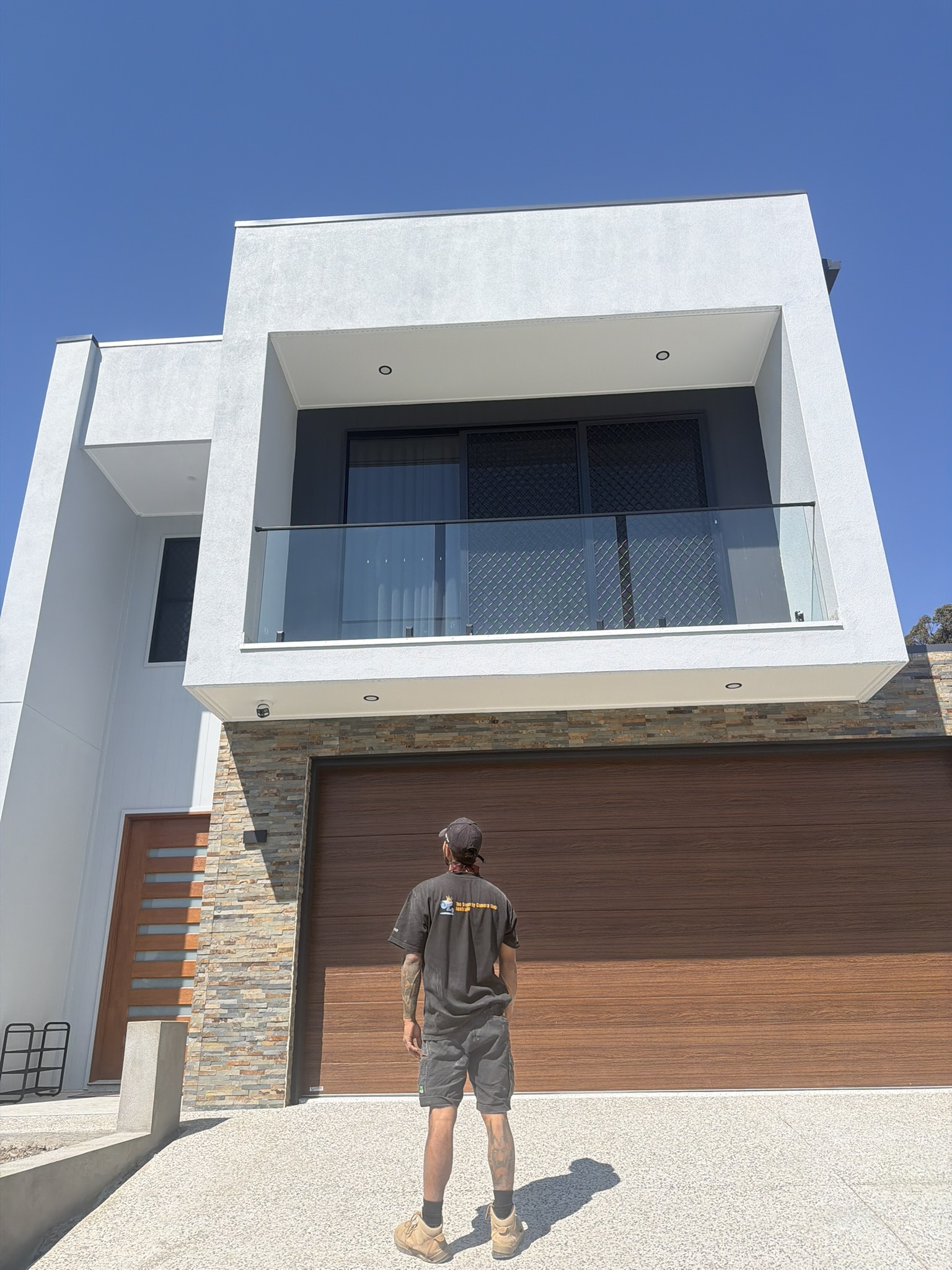

The property

The assessment

Before any equipment was specified, the property was assessed to understand the real approach routes and the areas conventional camera layouts can miss.

Vulnerabilities identified

• Front entrance: Required camera coverage and detection at the front door.
• Back entrance: Required coverage of the rear approach and an active deterrent.
• Inside the home: Required motion detection and an internal alarm, including coverage of movement from the upper level towards the main living areas where valuables are stored.

The system design

The CCTV layer

Three 8MP cameras provided coverage of the main entrances:

• Front entrance: One 8MP 180-degree panoramic camera with built-in lights and a siren, providing wide-angle coverage of the front approach.
• Back entrance: One 8MP 180-degree panoramic camera with built-in lights and a siren, providing wide-angle coverage of the rear approach.
• Inside the front door: One 8MP camera positioned to record activity at the internal entrance.

The internal layer

Internal detection was positioned to identify entry and movement through key areas of the home:

• Entrance and internal stairs: A motion sensor (PIR) facing the stairs to detect people coming down from the upper level towards the main living areas where valuables are stored.
• Front door: A door break sensor to detect a break event at the front entrance.
• Living room: A motion sensor with a built-in camera (PIR camera), providing visual verification when motion is detected.
• Internal siren: Positioned centrally on the ground floor to maximise its audible impact throughout the main living areas.

The internal detection layer can be armed separately from the cameras, allowing the family to move through the home while CCTV continues recording.

Power & recording

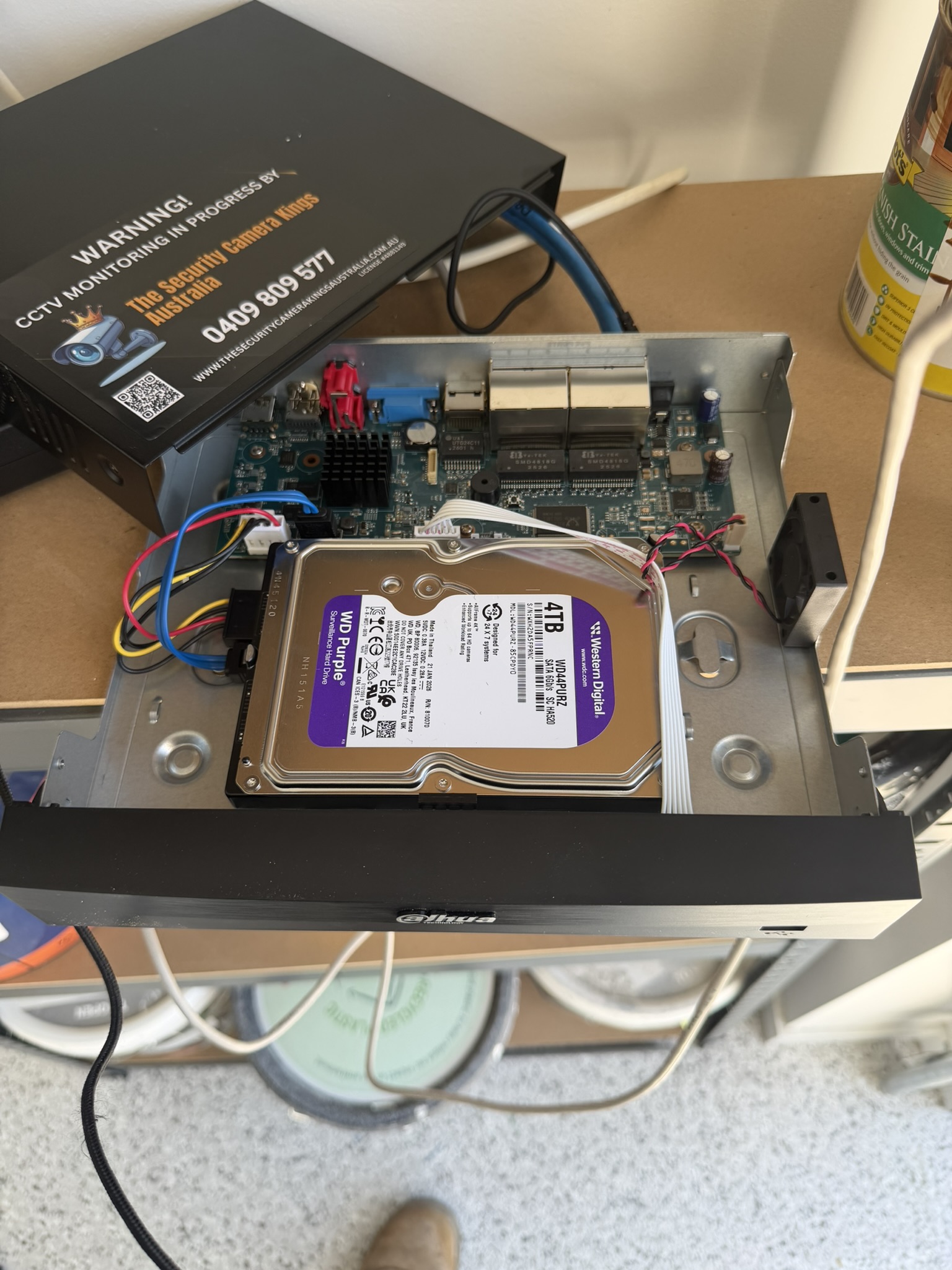

Recording is handled locally on the property. An uninterruptible power supply (UPS) provides temporary backup power to help critical security equipment continue operating if mains power is interrupted.

The installation

1. 01
   On-site assessment

   The property was assessed to map approach routes, entry points and potential blind spots.
2. 02
   Camera positions and cable routes

   Camera positions were marked and cable routes planned around the two-storey layout, flat roof and lack of accessible roof space.
3. 03

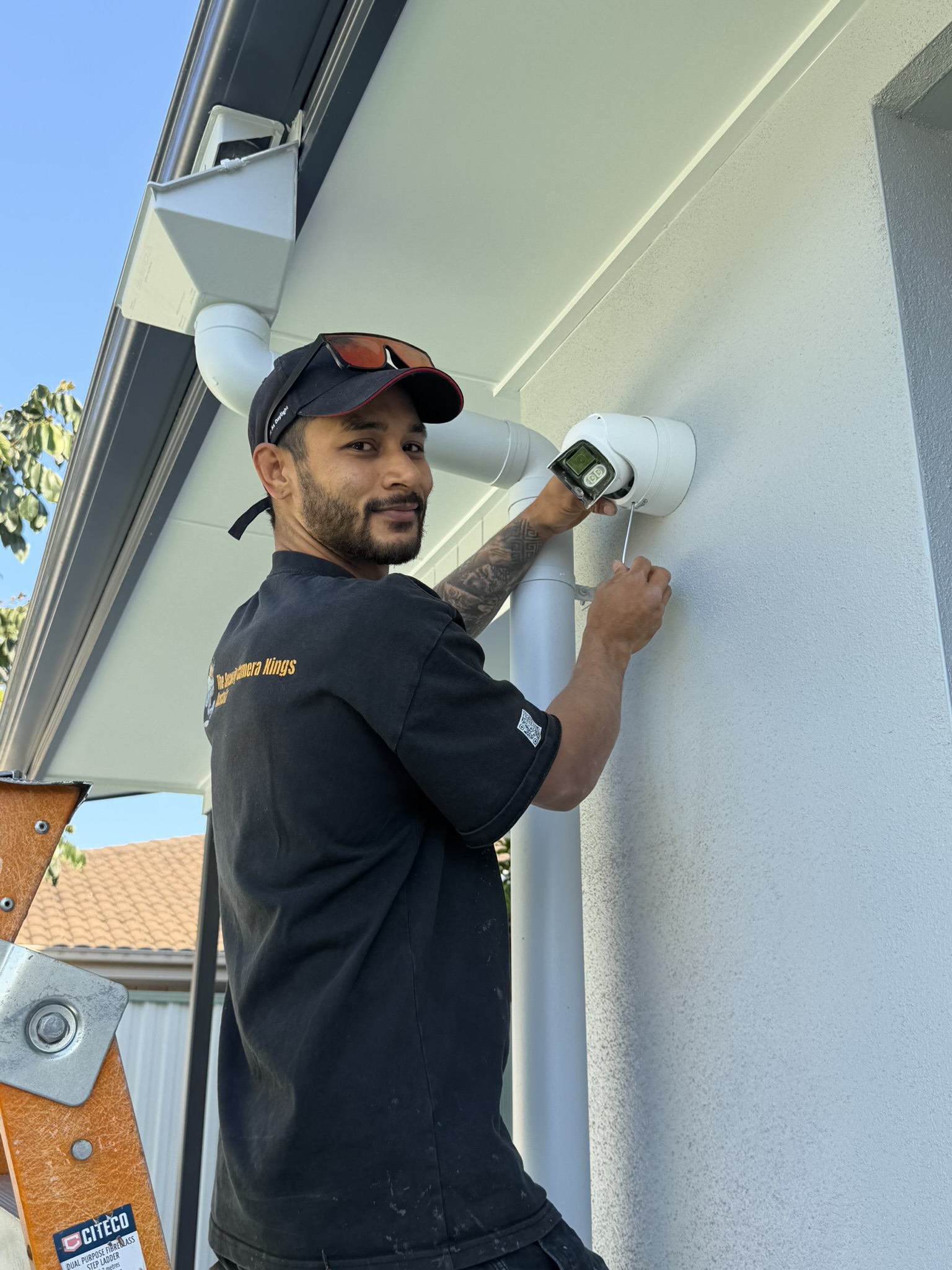

   Discreet installation

   Cable runs were completed neatly to complement the new home’s finishes.
4. 04
   Commissioning and setup

   The system was commissioned, the mobile app configured, and the family walked through how to operate it.

The handover

After commissioning, the system was configured for mobile viewing and the customer was walked through how to use the app, review footage and arm the internal detection layer separately from the cameras.

Follow-up check-ins were completed at 7 and 31 days. A 365-day check-in is planned once the system has been installed for one year.
